| Attribute | Value |
|---|---|
| Color | Customizable |
| Diesel engine | 42KW Yunnei engine |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Pipe diameter | 76mm/89mm |
| Pipe length | 2m |

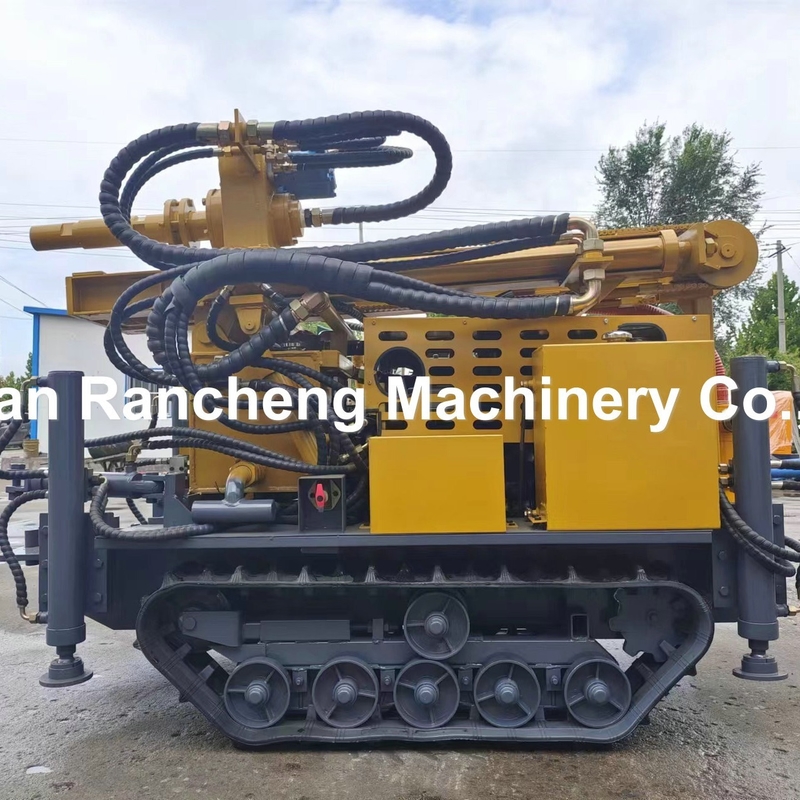

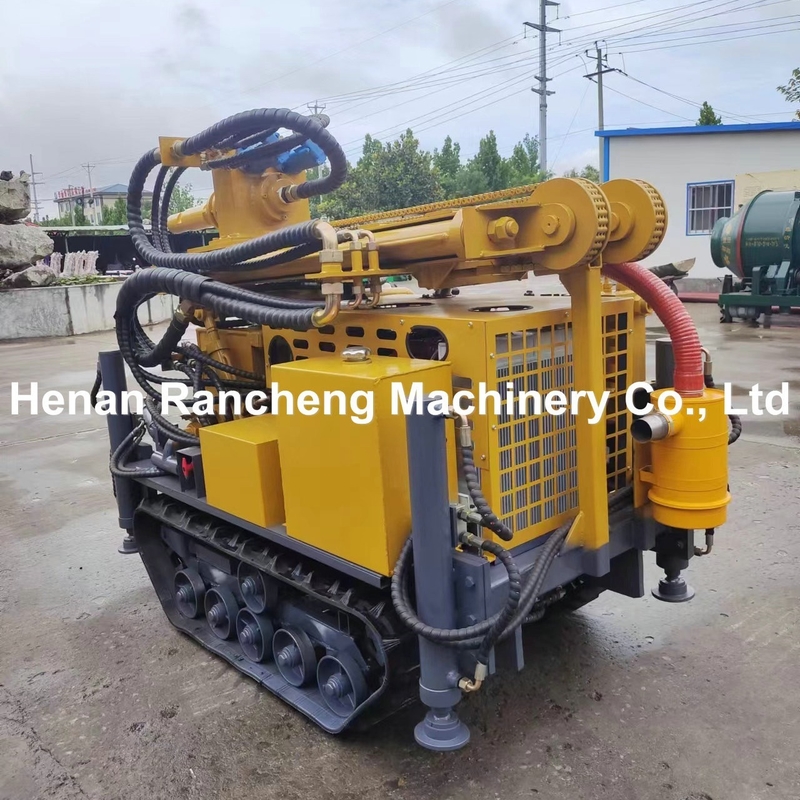

RCF150S Water Well Drilling Machine For 10-35m/H Feeding Efficiency 42kW Yunnei Diesel Engine
| Bore diameter(hammer) | 90-300mm |
| Bore depth | 150m |
| Air consumption | 17-31m³/min |
| Air pressure | 1.7-2.5Mpa |
| Once-time advance length | 2.4m |
| Pipe diameter | 76mm/89mm |
| Pipe length | 2m |
| Push force | 4T |
| Lifting force | 12T |
| Max torque of rotary | 3500-3800Nm |
| Rotary speed | 40-65r/min |
| Mud Pump flow | 200L/min (option) |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 2300×1200×1900MM |
| Weight | 2300kg |
| Diesel engine | 42KW Yunnei engine |
The price of a 150m water well drilling rig usually ranges from $10,000 to $60,000 or even higher, depending on factors such as brand, configuration, features and market conditions.
For example, the RCF150S water well drilling rig manufactured by Henan Shanhe Rancheng Machinery costs $12,000 and has excellent performance. As a professional drilling rig manufacturer with more than 10 years of industry experience, we provide a full range of services from demand assessment to equipment selection to meet your specific drilling needs.
The RCF150S is CE and ISO certified, equipped with a 42kW Yunnei diesel engine, and can drill holes up to 150m deep with a hole diameter range of 90-300mm. The rig is designed for off-grid operations and is suitable for operations in remote areas with limited power supply.
Our comprehensive after-sales service system, including shared global warranty, technical training and parts supply, gives you peace of mind and maximizes the operational efficiency of each project.
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China. We are dedicated in designing and manufacturing water well drilling rigs, rotary drilling rigs, anchor drilling rigs, core drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and drilling tools etc.
We have advanced technology, modern equipment, first-class team and rich experience. Our products passed ISO9001 and CE certification, and they are exported to around 200 countries and areas in the world, receiving very good feedback from our clients.
We pursue the principle of "Customer First, Integrity First", and we are sincerely expecting to cooperate with you!

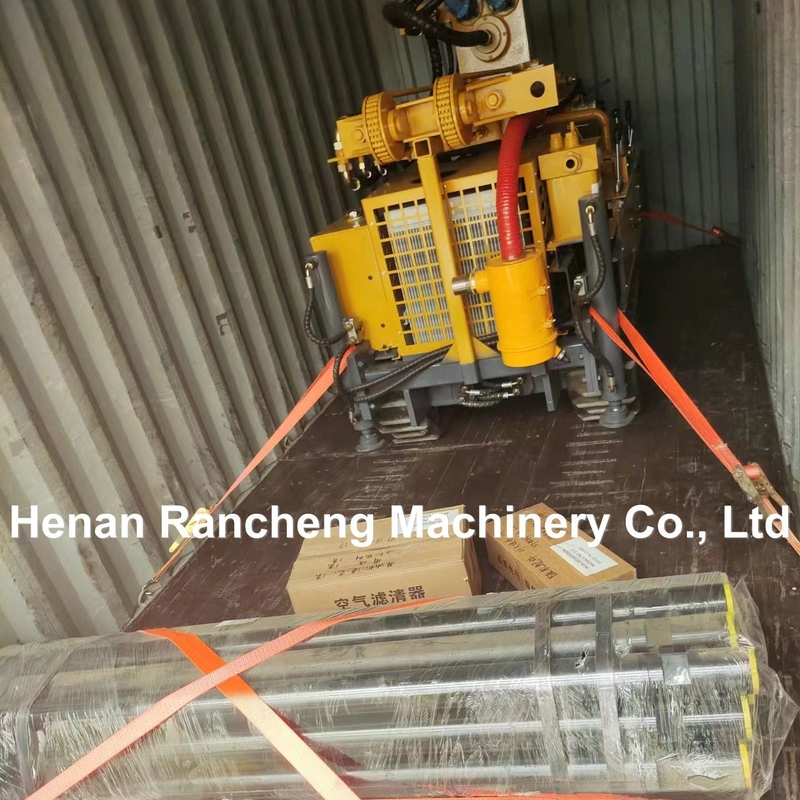

RCF150S can be loaded into a 20-foot container and transported by sea.
