Place of Origin:
China
ชื่อแบรนด์:
RanCheng
ได้รับการรับรอง:
CE,ISO 9001:2000
Model Number:
RCF200C
วิดีโอ
วิดีโอ
วิดีโอ
วิดีโอ
RCF200C deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.
Technical Parameters
| Model | RCF200C |
| Bore diameter(Hammer) | 90-350mm |
| Bore depth | 200m |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Pipe diameter | 76mm/89mm |
| Pipe length | 3m |
| Push force | 4T |
| Lifting force | 12T |
| Lifting speed | 2.5m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 18m/min |
| Fast feeding speed | 35m/min |
| Max torque of the rotary | 3500-4800Nm |
| Rotary speed | 45-70r/min |
| Mud Pump flow | 250L/min (option) |
| High hydraulic leg | 1.4m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 4000X1800X2300mm |
| Weight | 5000Kg |
| Diesel engine |
58KW Yuchai |
Application
Our water well drilling rigs adopt the latest models and advanced hydraulic technology, with the characteristics of low energy consumption, high torque, and convenient well position steering. They are mainly used for drilling resources exploration, hydrological wells, civil water wells, agricultural irrigation and other projects.

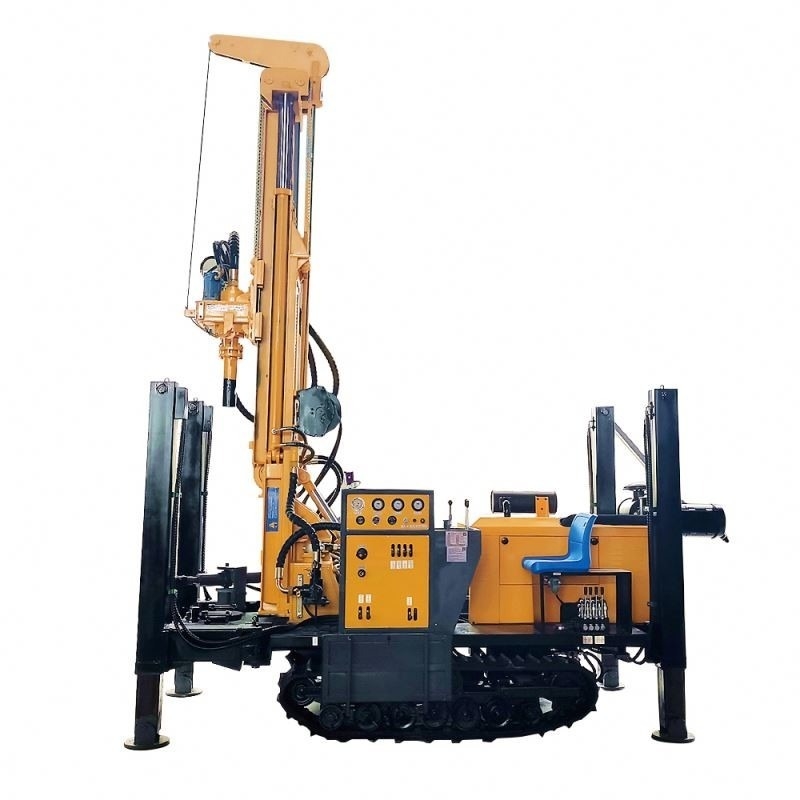

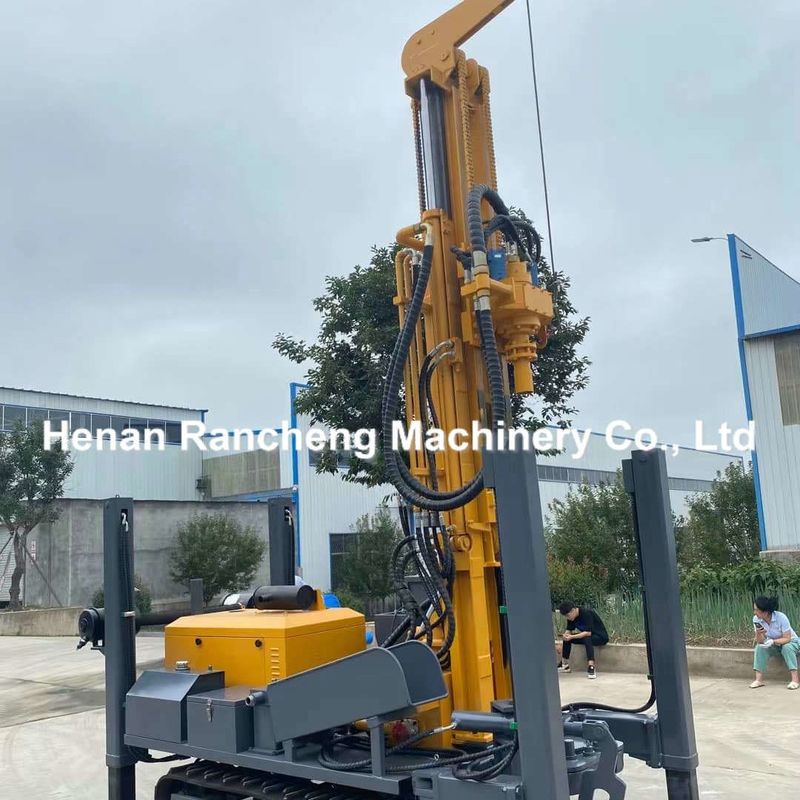

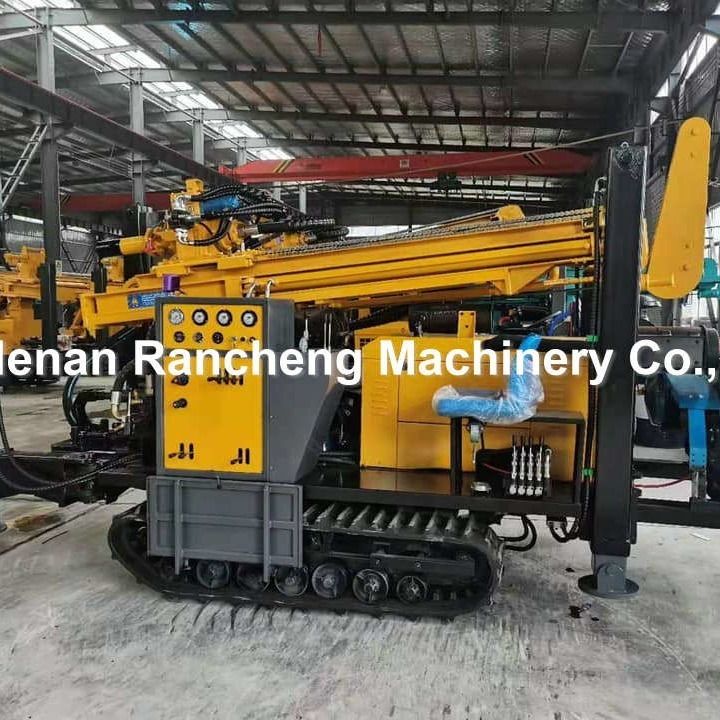

The Machine picture
