350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine
Product Description
The RCF350C deepwater well drilling rig is a product independently developed by our company.
Made of high-quality materials and featuring a stylish and compact design, our rig boasts higher efficiency, lower failure rates, greater cost-effectiveness and durability, and offers a superior overall cost-effectiveness. Our water well drilling rigs have been well-recognized in the market and received positive feedback from our customers.
Our water well drilling rigs utilize the latest models and advanced hydraulic technology, offering low energy consumption, high torque, and convenient well positioning. The combination of a new-generation down-the-hole hammer and increased pneumatic power significantly increases drilling speed.
Technical Parameters
| Model | RCF350C |
| Bore diameter(Hammer) | 140-350mm |
| Bore depth | 350m |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.5Mpa |
| Pipe diameter | 89mm/102mm |
| Pipe length | 1m/2m/3m/6m |
| Lifting force | 22T |
| Lifting speed | 3m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 30m/min |
| Fast feeding speed | 50m/min |
| Max torque of the rotary | 6200-8500Nm |
| Rotary speed | 55-115r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 450L/min (option) |
| High hydraulic leg | 1.5m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 6000×2000×2550mm |
| Weight | 8600Kg |
| Diesel engine | 91KW Yuchai engine |
| Drilling way | Air compressor drilling or mud pump drilling |
| Operating system | Full hydraulic operation |
Application
The water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.
After service
We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

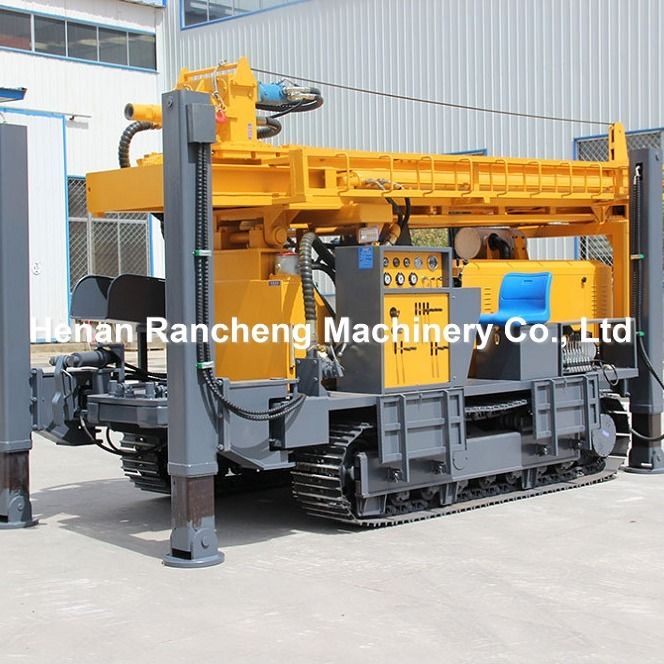

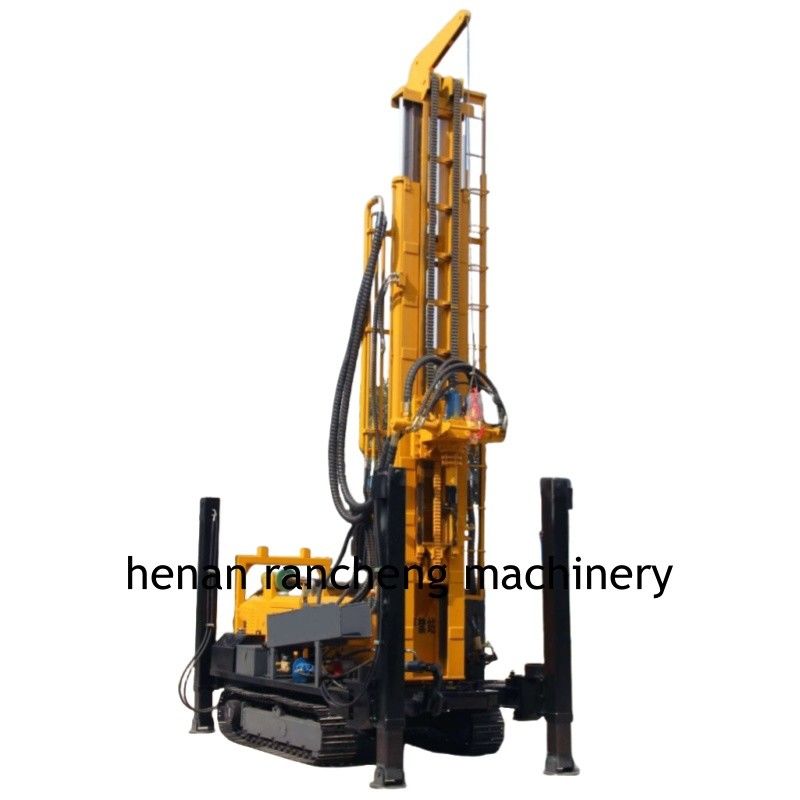

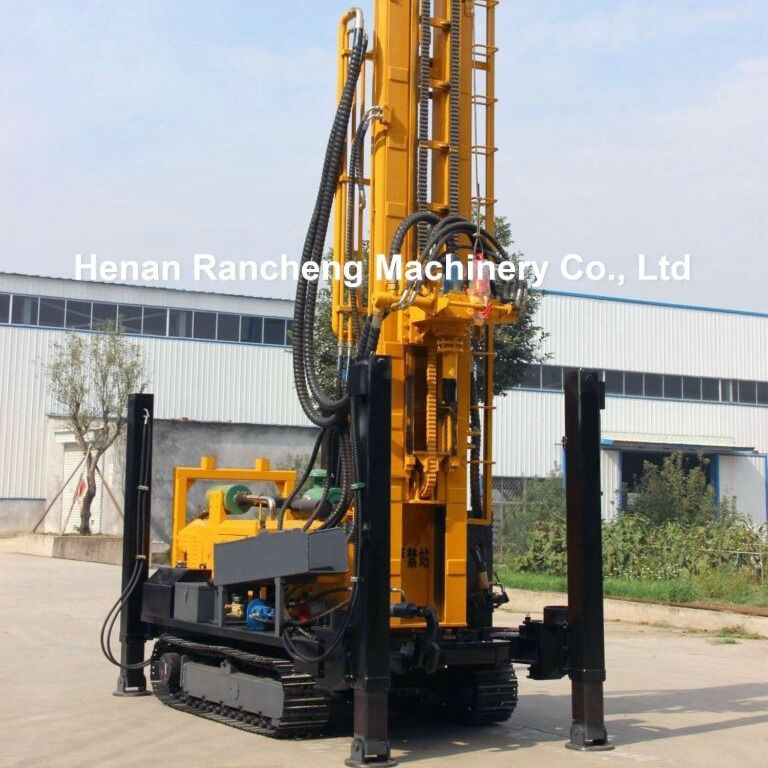

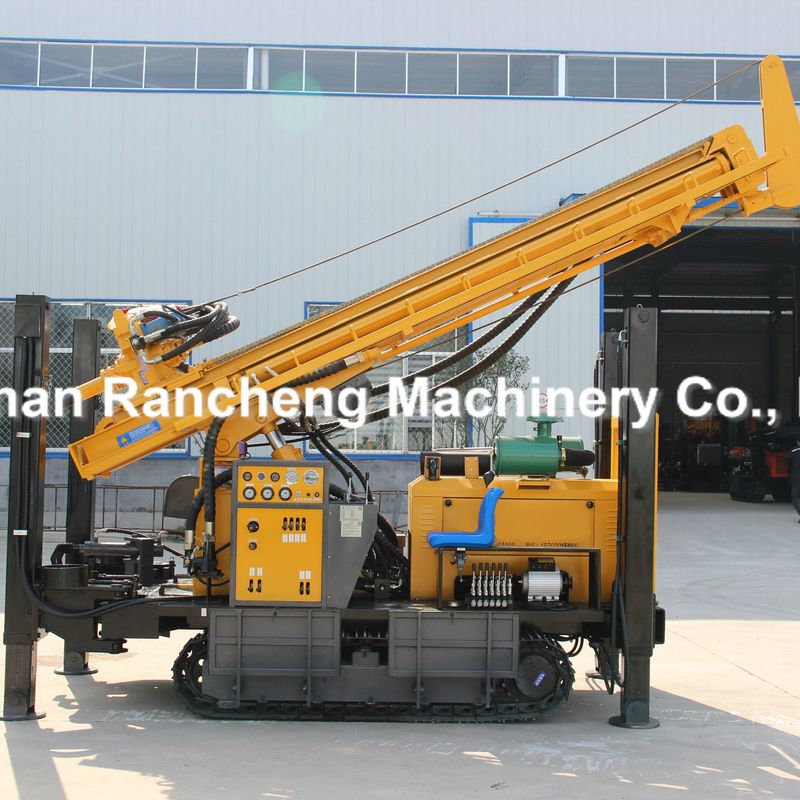

Machine picture display
