สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
RanCheng
ได้รับการรับรอง:
CE, ISO 9001:2000
หมายเลขรุ่น:
RCS200C เครื่องเจาะบ่อน้ำแบบพกพา
วิดีโอ

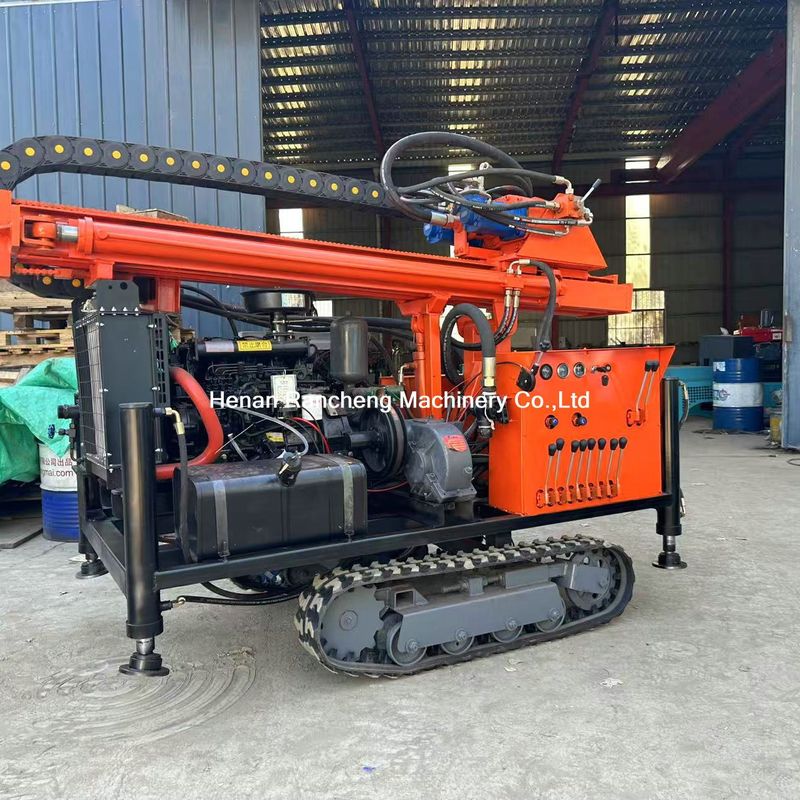

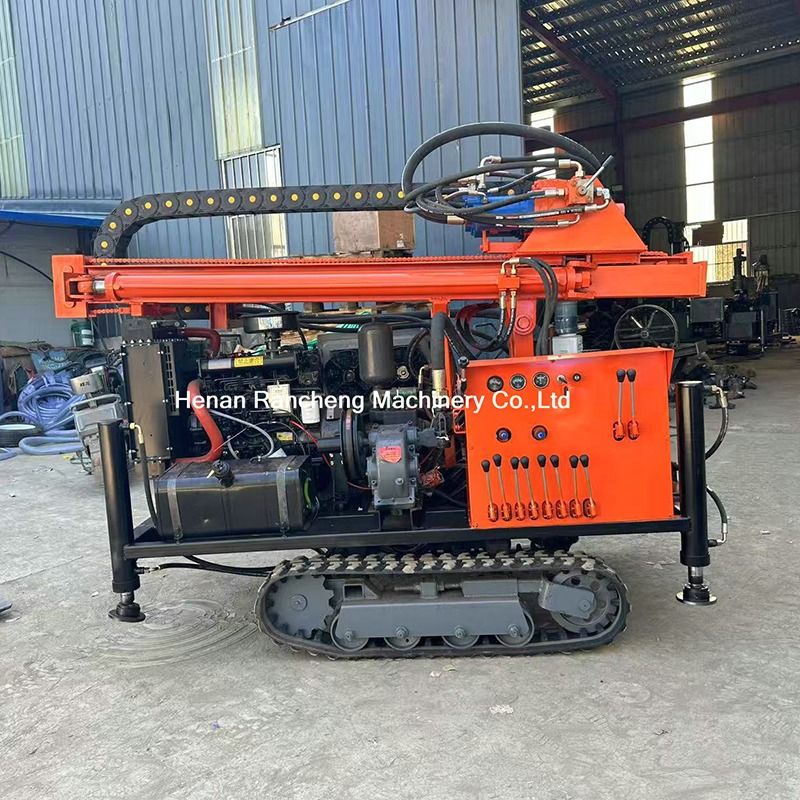

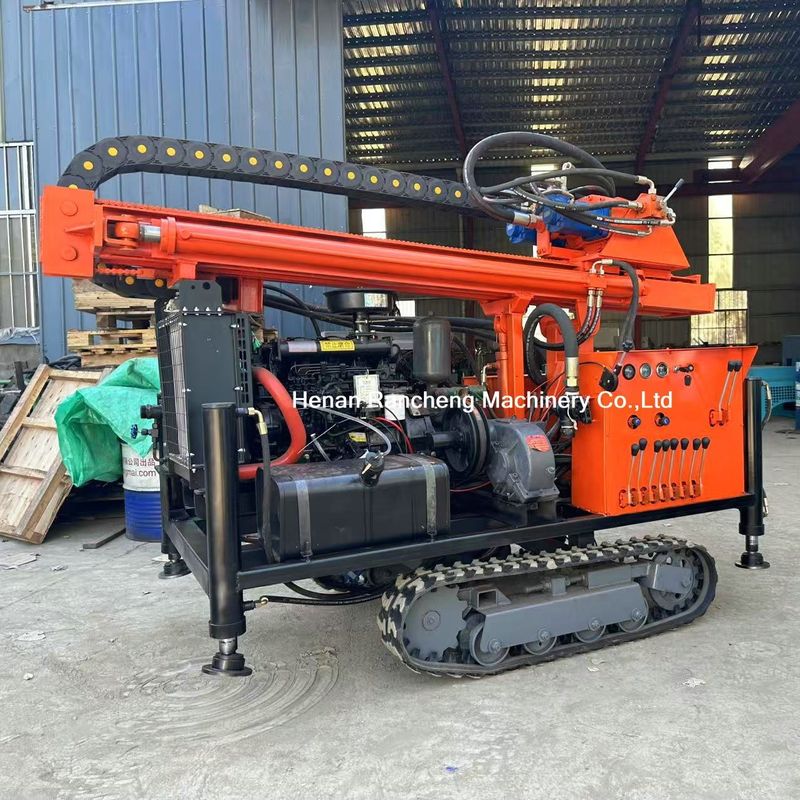

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity
Product Description
With a drilling depth of up to 200 meters and a diameter range of 100 to 450 mm, this drill can easily handle a wide range of projects. Equipped with a powerful 22-horsepower diesel engine, the RCS200C delivers reliable performance in a variety of geological formations, allowing you to complete your work efficiently.
In short, the RCS200C crawler-mounted portable drill is designed for users who value efficiency, reliability, and ease of use. Whether you're drilling for agriculture or providing clean water for your home, this drill delivers exceptional results. Explore the unique features of the RCS200C and join the ranks of satisfied users who have made it their favorite. Get ready to take your water well drilling projects to the next level!
Product Specifications
| Model | RCS200C |
| Geology drilled | All kinds |
| Drill depth | 200 m |
| Drilling Diameter | 90 -300mm |
| Drill system and operation | Hydraulic |
| For rock | 6-20F |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Rotary head | |
| Rotation Torque | 4000-5000N.m |
| Rotation speed | 80-200rpm |
| Lifting capacity | 14000KGS |
| Pull down capacity | 4000KGS |
| DRILL PIPE | |
| Drill pipe length | 2 meter |
| Drill pipe diameter | 60/76/89 mm |
| MUD PUMP | |
| Flow capacity | 160 liter/min |
| working pressure | 1.3MPA |
| DIMENSIONS | |
| Transport size | 2300*1200*1700mm |
| Weight | 2000KGS |
| Diesel engine | |
| Power | 45KW Weifang Hengtong |
Applications
This water well drilling rig is primarily used for geothermal drilling, agricultural irrigation, and for drilling holes in courtyards, gardens, and water wells. It is suitable for drilling holes with diameters ranging from 70-450mm and a maximum depth of 200m. It can also be used for smaller structural supports in farms or factories, with a drilling diameter of up to 450mm. It is suitable for various strata, including sand, soil, clay, and soft rock.
Product Image
