สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
RanCheng
ได้รับการรับรอง:
CE, ISO 9001:2000
หมายเลขรุ่น:
RCQ-1
วิดีโอ
วิดีโอ
วิดีโอ
วิดีโอ

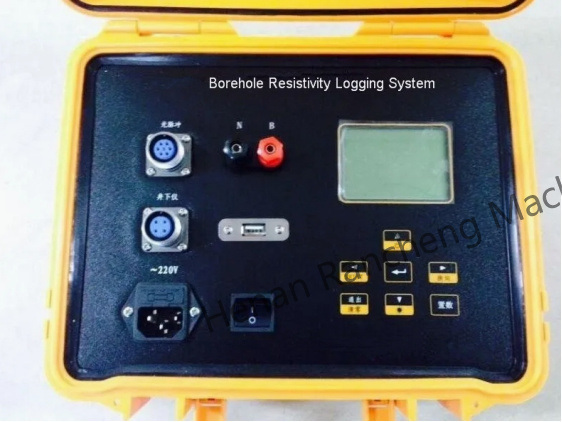

The RCQ-1 resistivity logging equipment is used to measure apparent resistivity in borehole formations. This surface instrument connects to a downhole electrode system and works with a PC to measure parameters such as apparent resistivity and natural potential. Our this RCQ-1 instrument uses an adaptive power supply scheme, delivering a wide range of AC square waves to the downhole formation. Both the supply current and voltage are measured simultaneously. This makes it easy to operate, has a wide measurement range, and is lightweight and reliable.
Technical Specifications
| No. | Item | Parameter |
| 1 | External Power Supply | AC 220V ± 20%, 50Hz, 20W |
| 2 | Working Condition | Temperature: -20 ºC ~ +40 ºC, humidity ≤ 90% |
| 3 | AB Power Supply | 6~60V, 0~200mA, AC square wave |
| 4 | Applicable Electrode System | A1.6M 0.4N |
| 5 | Apparent Resistivity Measurement Range | 1-2000Ωm |
| 6 | Apparent Resistivity Measurement Accuracy | 1% (scale) |
| 7 | Natural Potential Measurement Range | ±1200mv |
| 8 | Natural Potential Measurement Accuracy | 1% |
| 9 | Signal Output | USB interface |
| 10 | Depth Measurement | 0 ~ 9999.99 meters |
| 11 | Depth Measurement Accuracy | better than 0.1% |
| 12 | Speed Measurement Range | 0 ~ 9999 meters / hour |
| 13 | Speed Measurement Accuracy | better than 5% |

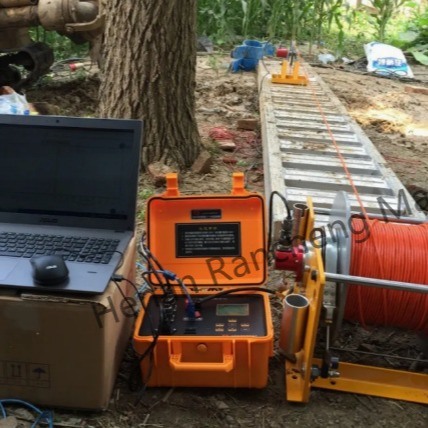

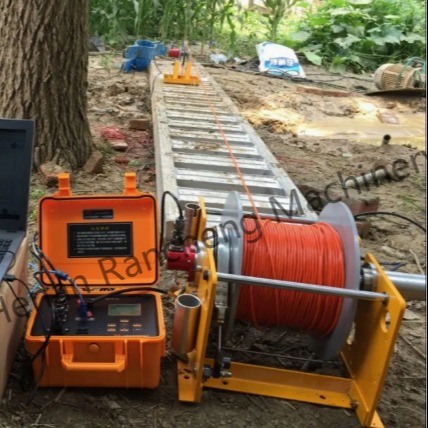

Real-time data measurement and transmission for field operations

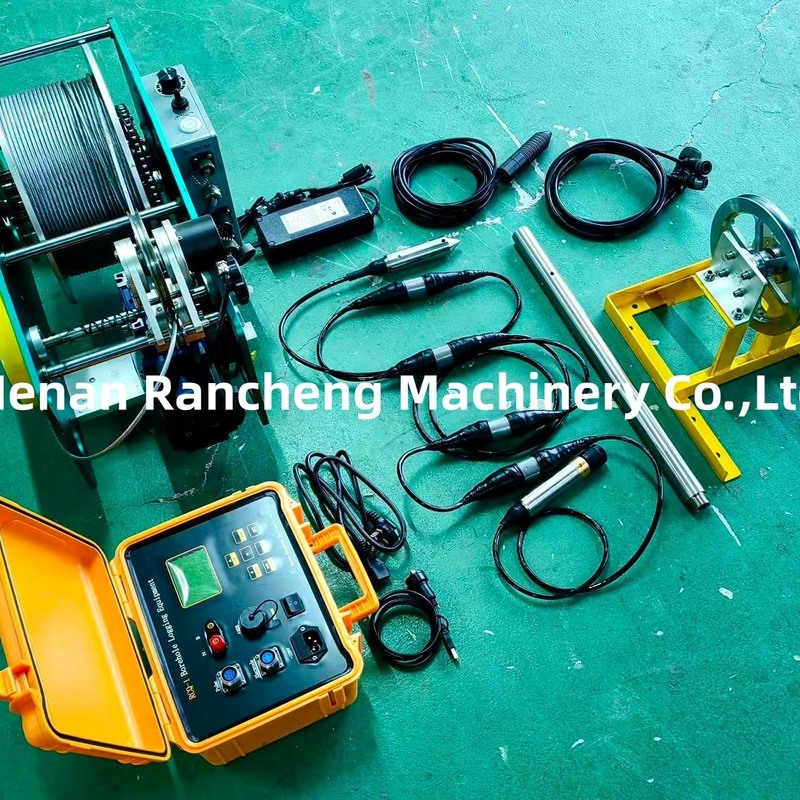

Kevlar cable and electric winch design for convenient deployment
Dual voltage channels allow simultaneous recording of two curves, improving efficiency
Gradient and natural potential measurement functions for versatile applications
AB measurement method reduces artificial electric field interference
High accuracy and repeatability ensure reliable geophysical survey results
Professional software for fast curve plotting and data processing
